Poly-Vee Driving Conveyor Roller Turning
Feature
The 1120 serie poly vee roller is used as the basic structure, and the plastic tapered sleeve is added to realize the poly vee belt drive turning function.
PVC Cone Sleeve Roller, by adding a conical sleeve (PVC) to the conventional roller, various types of turning mixers can be made to realize curved conveying. Standard taper is 3.6°, special taper can not be customized.
Steel cone roll, non-standard size, wide temperature range, can be customized steel cone roll. 3.6° standard taper can be used, and other tapers can also be customized.
General Data
| Conveying load | Single material≤7OKG Maximum speed 0.5m/s |
| Maximum speed | 0.5m/s |
| Temperature range | -5℃~40°C |
Materials
|
Bearing housing |
Plastic carbon steel components |
|
Sealing end cap |
Plastic components |
|
Call |
Carbon steel |
|
Roller surface |
Plastic |

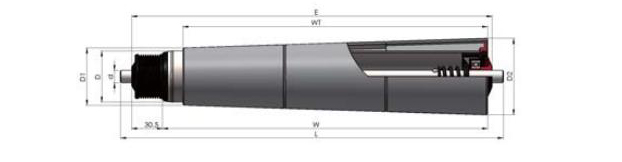

Structure
|
Taper Sleeve Parameter Table |
||
|
Taper Sleeve Length (WT) |
Taper Sleeve Diameter (D1) |
Taper Sleeve Diameter (D2) |
|
300 |
Φ56 |
Φ74.9 |
|
350 |
Φ52.9 |
Φ74.9 |
|
400 |
Φ56 |
Φ81.1 |
|
450 |
Φ52.9 |
Φ81.1 |
|
500 |
Φ56 |
Φ87.4 |
|
550 |
Φ52.9 |
Φ87.4 |
|
600 |
Φ56 |
Φ93.7 |
|
650 |
Φ52.9 |
Φ93.7 |
|
700 |
Φ56 |
Φ100 |
|
750 |
Φ52.9 |
Φ100 |
|
800 |
Φ56 |
Φ106.3 |
|
850 |
Φ52.9 |
Φ106.3 |
Selection Parameter Table
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Shaft Length L |
Material |
Selection example |
Special requirements |
||
|
D |
t |
d |
|
BF |
|
(Female thread) |
Spring |
Steel zincplated |
Stainless Steel |
Aluminum |
Outer diameter 50mm Shaft diameter 11mm |
Taper sleeve length 300mm |
|
|
|
|
|
|
|
|
|
AO |
B1 |
CO |
Roller surface length 350mm |
|
|
Φ50 |
1.5 |
11hex Φ8/12/15 |
50KG |
W+36 |
W+35 |
W+36 |
W+57 |
✓ |
✓ |
✓ |
Stainless steel 201, Female thread 1002C.5011.450.0.00 |
|
Remarks: only for Φ50 tubes, can add plastic cone sleeves, custom turning rollers.
