“O” belt roller curve conveyor is suitable for light-duty material conveying
”O“ belt Curve Tapered Roller with Plastic Sleeve Turning Roller | GCS
Feature
Using 1110 series unpowered roller as the basic structure, adding plastic taper sleeve to realize the "O" type belt drive turning function;
It can replace the 1012C series grooving roller to turn and reduce the runout.
PVC Cone Sleeve Roller, by adding a conical sleeve (PVC) to the conventional roller, various types of turning mixers can be made to realize curved conveying. Standard taper is 3.6°, special taper can not be customized.
Steel cone roll, non-standard size, wide temperature range, can be customized steel cone roll. 3.6° standard taper can be used, and other tapers can also be customized.
General Data
| Conveying load | Single material ≤30KG |
| Maximum speed | 0.5m/s |
| Temperature range | -5℃~40°C |
Materials
|
Bearing housing |
Plastic carbon steel components |
|
Sealing end cap |
Plastic components |
|
Call |
Carbon steel |
|
Roller surface |
Plastic |

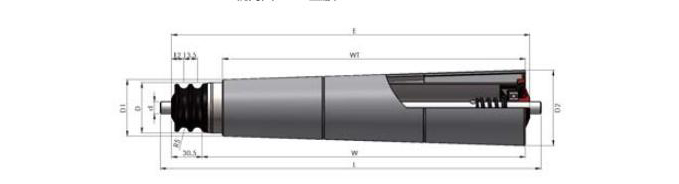

Structure
|
Taper Sleeve Parameter Table |
||
|
Taper sleeve length（WT) |
Taper Sleeve Diameter（D1) |
Taper Sleeve Diameter（D2) |
|
300 |
Φ56 |
Φ74.9 |
|
350 |
Φ52.9 |
Φ74.9 |
|
400 |
Φ56 |
Φ81.1 |
|
450 |
Φ52.9 |
Φ81.1 |
|
500 |
Φ56 |
Φ87.4 |
|
550 |
Φ52.9 |
Φ87.4 |
|
600 |
Φ56 |
Φ93.7 |
|
650 |
Φ52.9 |
Φ93.7 |
|
700 |
Φ56 |
Φ100 |
|
750 |
Φ52.9 |
Φ100 |
|
800 |
Φ56 |
Φ106.3 |
|
850 |
Φ52.9 |
Φ106.3 |
Selection Parameter Table
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Shaft Length L |
Material |
Selection example |
Special requirements |
||
|
D |
t |
d |
|
BF |
|
(Female thread) |
Spring pressure |
Steel zincplated |
Stainless Steel |
Aluminum |
Outer diameter 50mm Shaft diameter 11mm |
Taper sleeve length 300mm |
|
|
|
|
|
|
|
|
|
AO |
B1 |
CO |
Roller surface length 450mm |
|
|
Φ50 |
1.5 |
11hex Φ8/12/15 |
50KG |
W+36 |
W+35 |
W+36 |
W+57 |
✓ |
✓ |
✓ |
Stainless steel 201, Female thread 1002C.5011.450.0.00 |
|
Remarks: only for Φ50 tubes, can add plastic cone sleeves, custom turning rollers.
