Gravity Roller PH gravity roller in small conveyor rollers | GCS
Shaft Parameters
| Shaft dia | Female thread | Flat falcon value (b) | Flat falcon value (h) |
| Φ8 | M5*10 | / | / |
| Φ12 | M8*15 | 10 | 11 |
| Φ15 | M10*20 | 10 | 11 |
| Φ17 | M12*25 | 15 | 11 |
| Φ20 | M12*25 | 16 | 15 |
Feature
Standard precision bearings, special internal and external nesting structure, small clearance, smooth running; end plastic sleeves and end caps, with a certain effect of dust and water splash; small running runout, low noise, can be customized anti-static metal structure.
General Data
Max. load 250KG Max. speed 2m/s
Temperature range -5°C~40°C
Materials
Bearing housings: Plastic carbon steel components
Seal end caps: Plastic components
Ball: carbon steel
Roller surface: Steel/Aluminum/PVC
Product Application

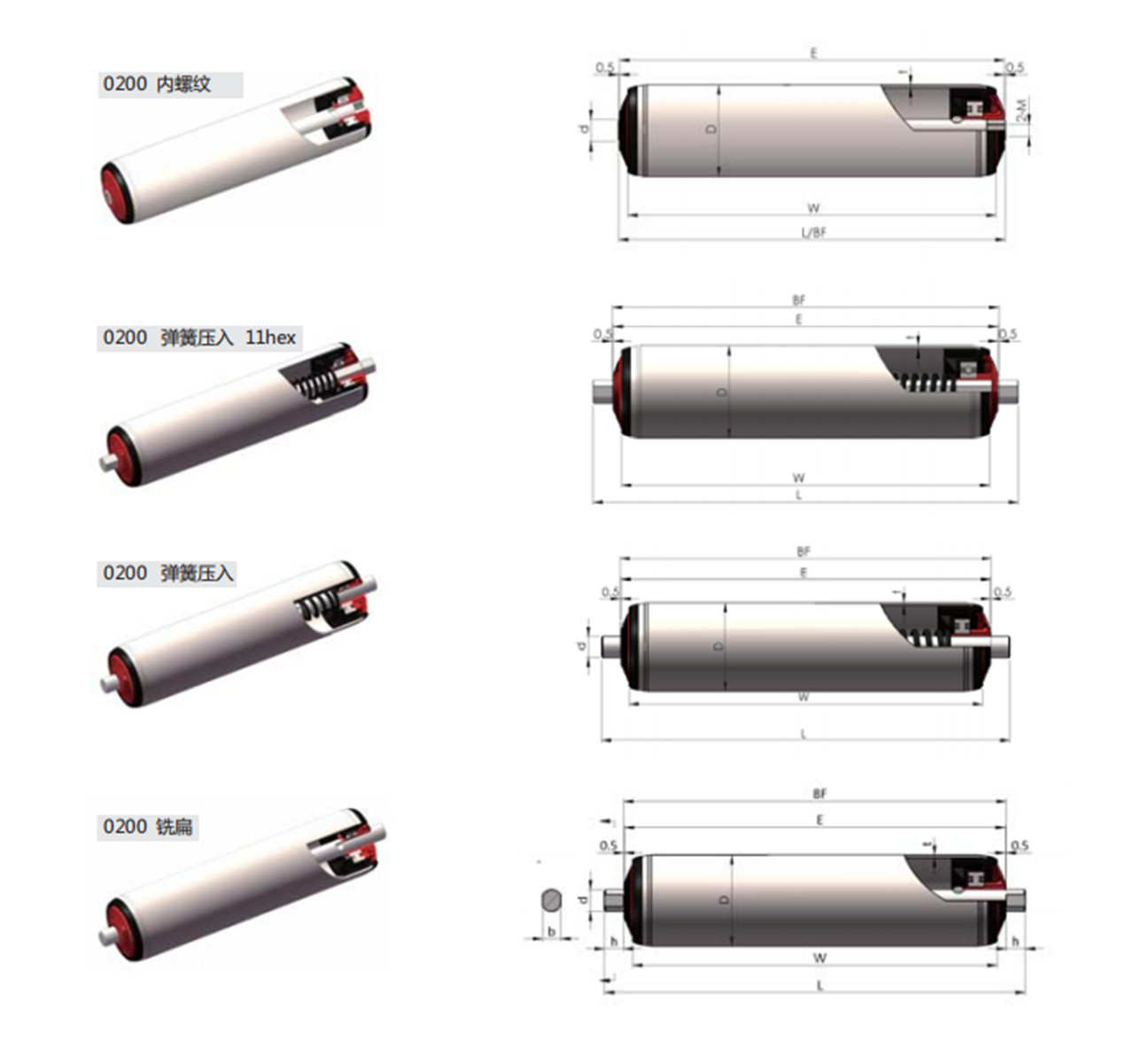

0200 Model Selection Parameter Table
| Tube Dia | Tube thickness | Shaft Dia | Maximum load | Bracket width | Locating step | Shaft Length L | Shaft Length L | Material | Selection of the sample | Note | |||
| D | t | d | BF | （Milling flat）E | (Female thread) | Spring pressure | Steel galvanized | Stainless Steel | Aluminum | PVC | OD 50mm Shaft dia 11mm | ||
| Tube Length 600mm | |||||||||||||
| Φ38 | 1.2 | 11hex Φ8/10/12 | 80KG | W+10 | W+9 | W+10 | W+31 | ✓ | ✓ | Stainless steel 201 spring press fit | Anti-static belt conveyor roller | ||
| Φ48.6 | 1.5 | 11hex Φ10/12 | 120KG | W+10 | W+9 | W+10 | W+31 | ✓ | ✓ | Roll surface length 600mm steel galvanized | |||
| Φ50 | 1.5 | 11hex Φ10/12/15/17 | 150KG | W+10 | W+9 | W+10 | W+31 | ✓ | ✓ | ✓ | spring pressed | ||
| Φ50 | 2.0 | 11hex Φ8/10/12/15 | 150KG | W+10 | W+9 | W+10 | W+31 | ✓ | 0200.50.11.600B.0.00 | ||||
| Φ50 | 2.5 | 11hex Φ8/10/12/15 | 160KG | W+10 | W+9 | W+10 | W+31 | ✓ | |||||
| Φ60 | 2.0 | 11hex Φ10/12/15 | 160KG | W+10 | W+9 | W+10 | W+31 | ✓ | ✓ | ✓ | |||
| Φ60 | 3.0 | Φ17 | 180KG | W+10 | W+9 | W+10 | / | ✓ | |||||
| Φ80 | 3.0 | Φ20 | 250KG | W+11 | W+11 | W+12 | / | ✓ | |||||
Note: Φ50 tube can be coated with 2mmPVC soft glue.
Product Application

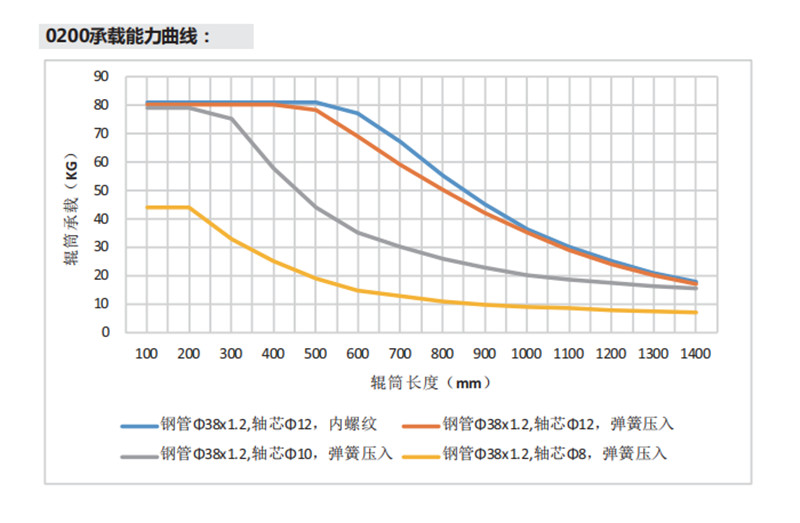

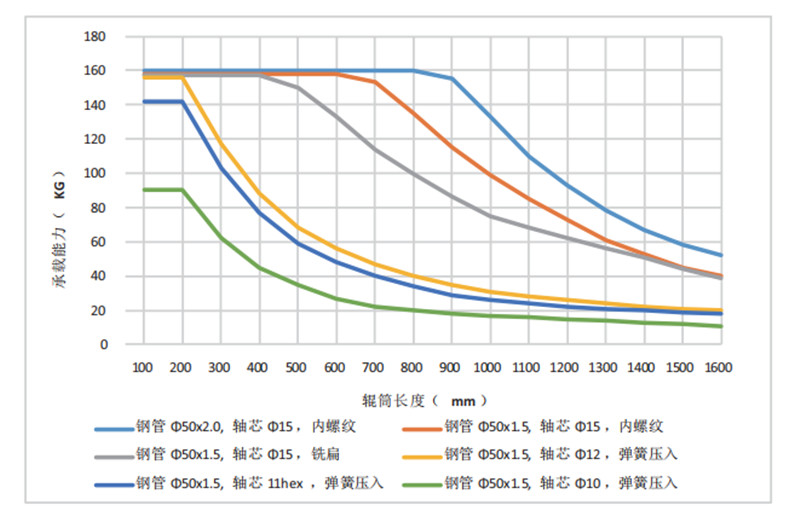

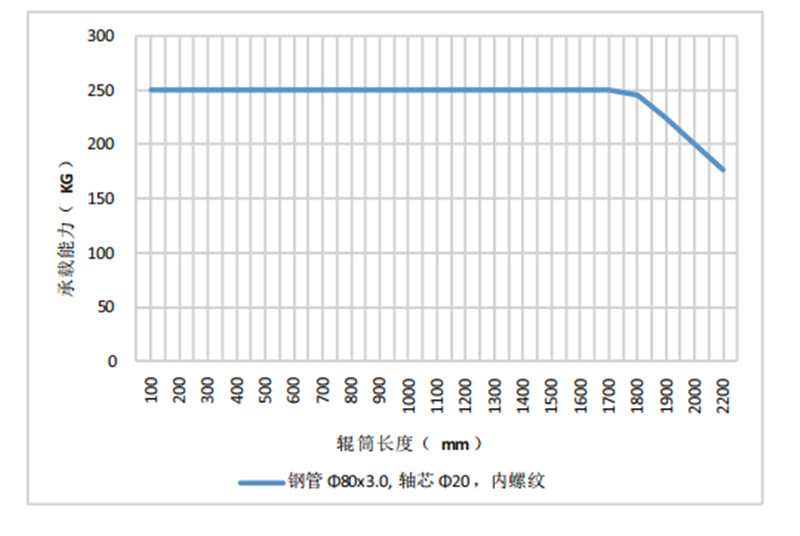

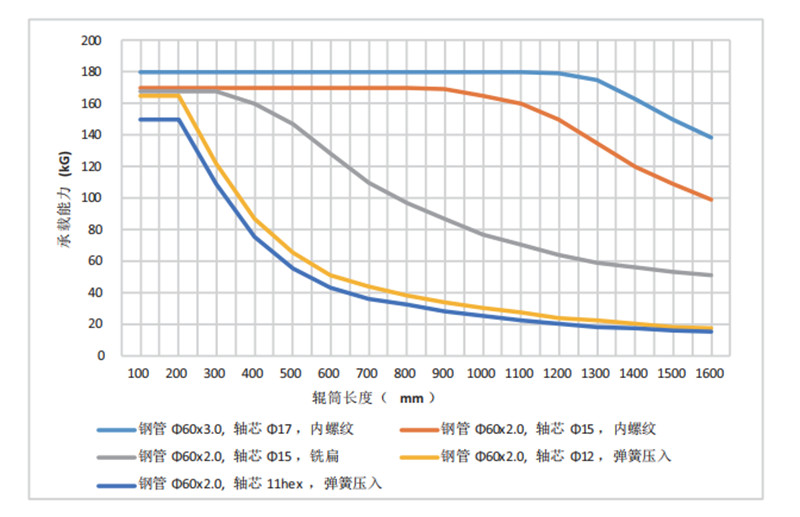

Remarks: The above load-bearing curve is the uniform static load of a single tube.
