Poly V roller conveyor drive Gravity roller Conveyor
Multi Wedge Belt Telescopic Roller Conveyor, Gravity Roller Conveyor, Warehouse Logistics Magic.

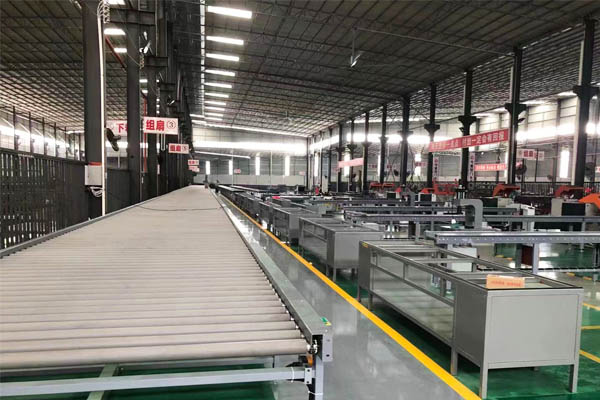

This kind of flexible roller conveyor is driven by electric power and can be moved, telescoped and adjusted in height. Widely used in factory production.
GCS factory will be able to personalize different configurations for different application scenarios of the conveyor system.

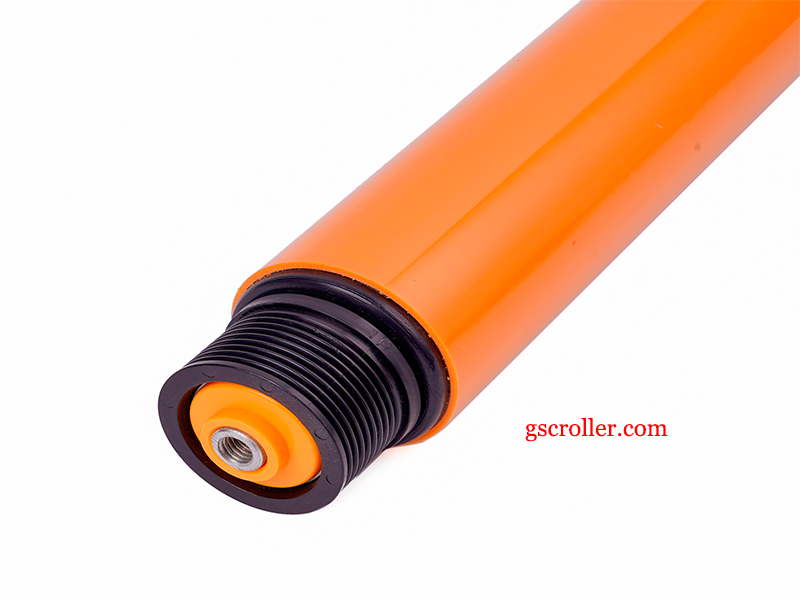

Poly V-belt Driven Roller Conveyors, commonly referred to as PLV, provides a positively driven live roller conveyor. Because of the positive Poly-V belt and Grooved hubs, it’s an ideal choice for conveying heavy product which includes heavy packages, pallets, containers, drums and other unit loads. PLV19 is suitable for loads up to 200 lbs. and PLV25 is suitable for loads up to 2,500 lbs. In addition, it is very quiet, capable of higher speeds, and is less expensive than commonly selected chain driven live roller conveyors.
Application
• Conveyance of cases, cartons totes, fixtures, cardboard boxes and more
• Zero Pressure Accumulation
• Unitized loads
• Tire and wheel delivery
• Appliance transport
• Side loading and unloading
Where It Works
• Warehousing & Distribution
• Manufacturing
• Order Fulfillment
• Aerospace
• Government Military & Agency
• Automotive
• Parcel Handling
• Appliance
• Cabinetry & Furniture
• Food & Beverage
• Tire
Heavy-duty welded driven roller
Gravity roller with steel sprockets in stationary-driven roller
Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.
|
Model |
Tube Diameter D (mm) |
Tube Thickness T (mm) |
Roller Length RL (mm) |
Shaft Diameter d (mm) |
Tube Material |
Surface |
|
PH50 |
φ 50 |
T=1.5 |
100-1000 |
φ 12,15 |
Carbon Steel Stainless Steel |
Zincorplated Chrome plated |
|
PH57 |
φ 57 |
T= 1.5,2.0 |
100-1500 |
φ 12,15 |
||
|
PH60 |
φ 60 |
T= 1.5,2.0 |
100-2000 |
φ 12,15 |
||
|
PH76 |
φ 76 |
T=2.0,3.0, |
100-2000 |
φ 15,20 |
||
|
PH89 |
φ 89 |
T=2.0,3.0 |
100-2000 |
φ 20 |
Note: Customisation is possible where forms are not available
Product Application
Processes
At GCS China, we understand the importance of efficient material transportation in industrial environments. To meet this challenge, we have developed a conveying system that combines gravity roller technology with the benefits of mechanical precision bearings. This innovative solution offers several key benefits to increase productivity and streamline operations.
One of the outstanding features of our conveyor systems is the use of gravity rollers. These rollers are available in tube sizes PP25/38/50/57/60 for smooth and reliable material transportation. By utilizing gravity, items can be moved effortlessly from one point to another without the need for an external power source. This not only reduces energy consumption, but also ensures a cost-effective solution for material handling.
RollerShaft
Roller Tube
Roller Conveyor
Service
For long-lasting performance, our conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.
As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.
