Products
Gravity Roller, Non-driven Roller, Nylon Roller
Non-powered roller
Gravity Nylon Roller
Non-power roller conveyor equipment is a gravity roller conveyor, mainly used for conveying all kinds of boxes, bags, trays, packaged goods, some bulk materials and small items need to be placed in the tray or crate transfer conveyor, in addition, the non-power roller equipment can also be transported perforated circumferential loads or a single piece of material with a large weight, you can use the accumulating roller to achieve the accumulating conveyor, the non-powered roller also has a simple structure, reliability and high characteristics. It is also characterized by simple structure and high reliability. Non-powered roller is also characterized by simple structure and high reliability. We are willing to provide more personalized services, please contact us immediately!

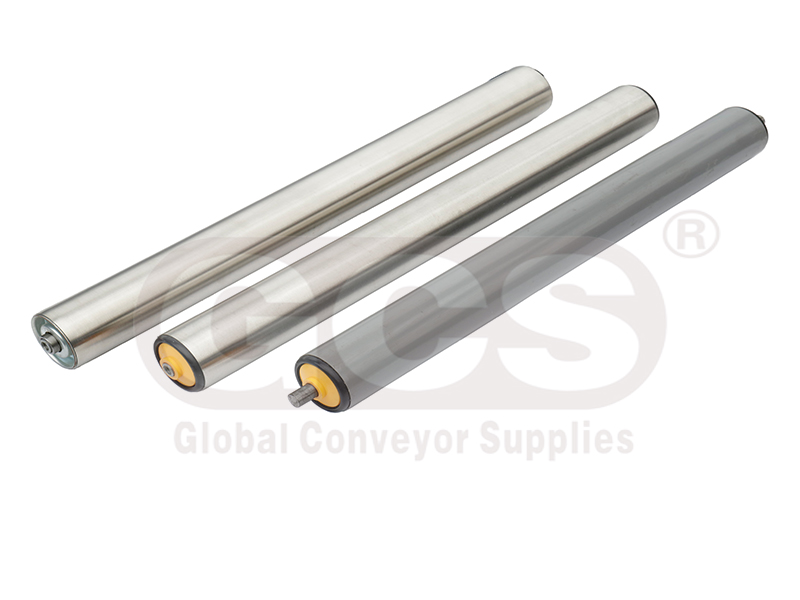

Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.
|
Model |
Tube Diameter D (mm) |
Tube Thickness T (mm) |
Roller Length RL (mm) |
Shaft Diameter d (mm) |
Tube Material |

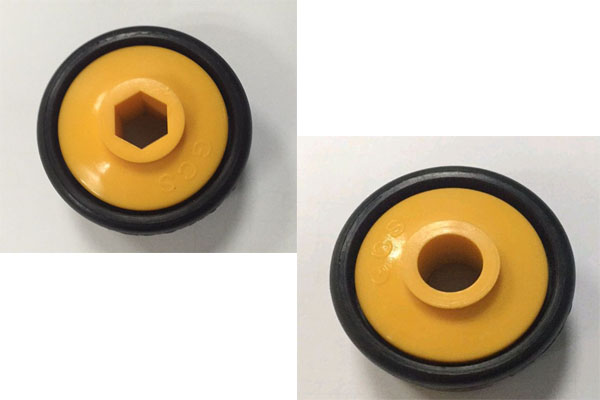

Bearing assembly seat |
Surface |
|
NH38 |
φ 38 |
T=1.0,1.2,1.5 |
300-1600 |
φ 12 |
Carbon Steel Stainless Steel PVC |
Nylon |
Zincorplated Chrome plated |
|
NH50 |
φ 50 |
T= 1.2,1.5 |
300-1600 |
φ 12,15 |
Nylon |
||
|
PH60 |
φ 60 |
T= 1.5,2.0 |
300-1600 |
φ 12,20 |
Nylon |
||
|
PH75 |
φ 75 |
T=2.0,2.5,3.0 |
300-1600 |
φ 15 |
Nylon |
||
|
PH80 |
φ 80 |
T=3.0 |
300-1600 |
φ 20 |
Nylon |
Note: Customisation is possible where forms are not available
Product Application
Processes
At GCS China, we understand the importance of efficient material transportation in industrial environments. To meet this challenge, we have developed a conveying system that combines gravity roller technology with the benefits of mechanical precision bearings. This innovative solution offers several key benefits to increase productivity and streamline operations.
One of the outstanding features of our conveyor systems is the use of gravity rollers. These rollers are available in tube sizes PP25/38/50/57/60 for smooth and reliable material transportation. By utilizing gravity, items can be moved effortlessly from one point to another without the need for an external power source. This not only reduces energy consumption, but also ensures a cost-effective solution for material handling.
RollerShaft
Roller Tube
Roller Conveyor
Service
For long-lasting performance, our conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.
As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.
