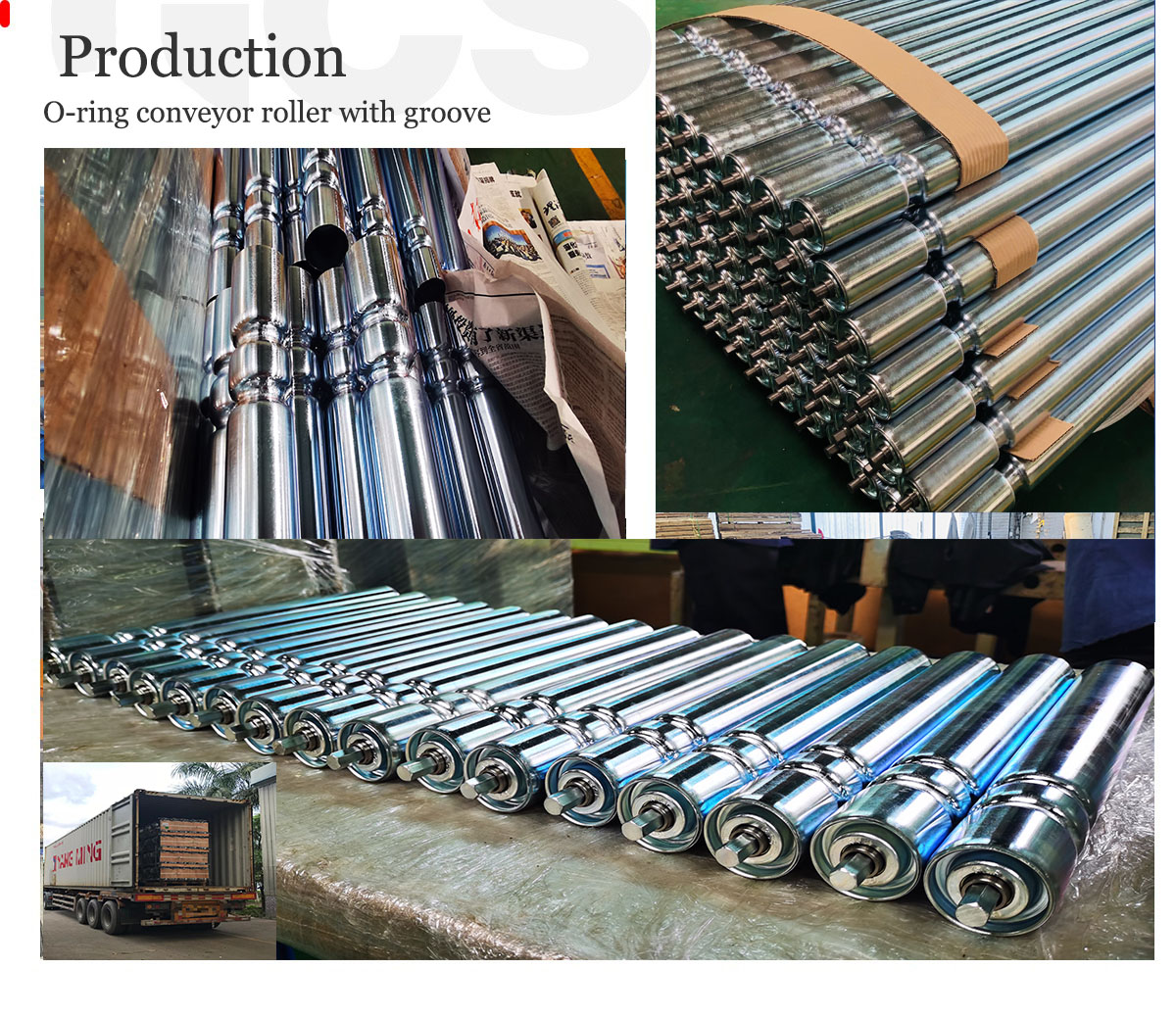

Drive groove roller with O-ring conveyor roller
A drive groove roller is a type of roller used in a variety of applications, such as conveyor systems, to assist in driving and guiding a belt or chain. It usually has a groove or track on its surface that lines up with the belt or chain, providing smooth and controlled movement. Drive trough rollers are typically made of durable materials, such as steel or plastic, to withstand heavy loads and friction. It is designed to be mounted on a shaft or axle and can be motorized or driven by an external power source. The main purpose of driving a grooved roller is to ensure proper tension and alignment of the belt or chain to prevent slipping or misalignment. It helps deliver power efficiently and smoothly, resulting in optimal performance and minimal downtime. Overall, driven grooved rollers play a vital role in many industries by facilitating the movement of materials and products, ensuring productivity and efficiency in a variety of applications.
Drive Roller O-Ring with Grooved
Gravity roller with grooved rollers
Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.
| Model | Tube Diameter | Tube Thickness | Roller Length | Shaft Diameter | Tube Material | Surface |
| D (mm) | T (mm) | RL (mm) | d (mm) | |||
| GR38-12 | φ 37.7 | T=1.5 | 300-1200 | φ 12 | Carbon Steel | Zincorplated |
| GR42-12 | φ 42 | T= 2.0 | 300-1600 | φ 12 | Stainless Steel | |
| GR48-12 | φ 48 | T= 2.9 | 300-1600 | φ 12 | Chrome plated | |
| GR50-12 | φ 50.7 | T=1.5，2.0 | 300-1600 | φ 12 | ||
| GR57-15 | φ 56.6 | T=1.5,2.0 | 300-1600 | φ 15 | ||
| GR60-12 | φ 59.2 | T=2.0，3.0 | 300-1600 | φ 12 | ||
| GR60-15 | φ 59.2 | T=2.0，3.0 | 300-1600 | φ 15 |
Note: Customisation is possible where forms are not available
Product Application
Processes
GCS Conveyor Products is a leading manufacturer of gravity rollers, offering a variety of conveying equipment, including gravity rollers. They are available in different sizes, materials, and configurations to meet the needs of various industries. They offer a wide selection of roller types such as straight rollers, tapered rollers, and curved rollers, designed for different applications and conveyor systems.
One of the outstanding features of our conveyor systems is the use of gravity rollers. These rollers are available in tube sizes PP25/38/50/57/60 for smooth and reliable material transportation. By utilizing gravity, items can be moved effortlessly from one point to another without the need for an external power source. This not only reduces energy consumption but also ensures a cost-effective solution for material handling.
RollerShaft
Roller Tube
Roller Conveyor
Service
For long-lasting performance, our conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.
As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.
