Conveyor roller, Steel conical rollers, turning rollers, guide rollers
At GCS China, we understand the importance of efficient material transportation in industrial environments. To meet this challenge, we have developed a conveying system that combines gravity roller technology with the benefits of mechanical precision bearings. This innovative solution offers several key benefits to increase productivity and streamline operations.
One of the outstanding features of our conveyor systems is the use of gravity rollers. These rollers are available in tube sizes PP25/38/50/57/60 for smooth and reliable material transportation. By utilizing gravity, items can be moved effortlessly from one point to another without the need for an external power source. This not only reduces energy consumption but also ensures a cost-effective solution for material handling.
GCSroller is the sole producer, from the design of the requirements to the control of the production until it reaches the customer.
Roller Conveyor Line
Roller Conveyor Conical Conveyor Line
The conical shape allows rollers to evenly transfer loads during rolling. This greatly reduces wear, which in turn improves durability.

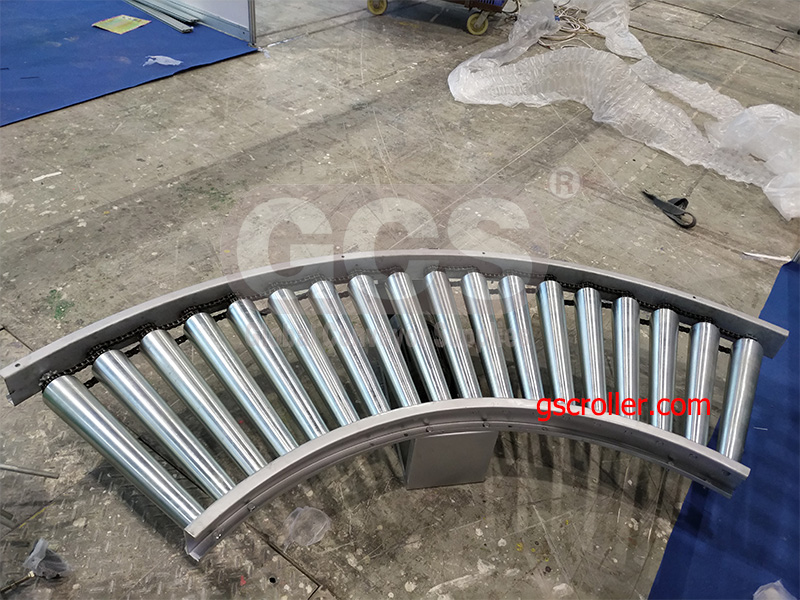

The tapered roller is mainly used for curved roller conveyor lines, and it can be customized into a 90-degree turn and a 180-degree turn. Its application is mainly to transport goods.. In addition, there are similar mechanized automatic equipment including case sealing machine, unpacking machine, wrapping machine, winding machine or palletizing machine.
It can be made sprocket conveyor roller, unpowered conveyor roller, rubber coating conical roller, knurled conical roller, grooved conical roller, welcome contact us custom made your roller.
Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.
|
Model |
Tube Diameter D (mm) |
Tube Thickness T (mm) |
Roller Length RL (mm) |
Shaft Diameter d (mm) |
Tube Material |
Surface |
|
SS38 |
φ 38 |
T=1.5 |
300-1000 |
φ 12 |
Carbon Steel Stainless Steel |
Zincorplated Chrome plated |
|
SS42 |
φ 42 |
T= 2.0 |
300-1500 |
φ 12 |
||
|
SS48 |
φ 48 |
T= 2.9 |
300-2000 |
φ 12 |
||
|
SS50 |
φ 50 |
T=1.5 |
300-2000 |
φ 12 |
||
|
SS57 |
φ 57 |
T=1.5 |
300-2000 |
φ 15 |
||
|
SS60 |
φ60 |
T=2.0,3.0 |
300-2000 |
φ15 |
||
|
SS76 |
φ76 |
T=3.0 |
300-2000 |
φ20 |
||
|
SS80 |
φ80 |
T=3.0 |
300-2000 |
φ20 |
||
|
SS89 |
φ89 |
T=3.0 |
300-2000 |
φ20 |
Note: Customisation is possible where forms are not available
Sprocket：14tooth*1/2”pitch or to order
Product Application
Processes
RollerShaft
Roller Tube
Roller Conveyor
Service
For long-lasting performance, our roller conveyor systems utilize mechanical precision bearings. Known for their superior durability and load-carrying capacity, these bearings ensure that the rollers run smoothly and efficiently. In addition, our rollers are galvanized to add an extra layer of corrosion protection and extend their life. This ensures a reliable and low-maintenance solution for your material handling needs.
As a manufacturing facility, GCS China understands the importance of flexibility and customization. We offer a wide range of gravity rollers, allowing you to choose the most suitable option for your specific requirements. This customization extends to our conveyor systems, as we can configure them to meet your unique operational needs. Our team of experienced professionals is ready to help you find the perfect solution for your business.
