Conical roller with nylon seat union

Short Description:

Conical rollers typically have a tapered shape, with a larger diameter at one end and a smaller diameter at the other end.
This design allows the rollers to smoothly guide materials around curves in a conveyor system. The main components of conical rollers include the roller shell, bearings, and shaft. The roller shell is the outer surface that comes into contact with the conveyor belt and the materials being transported. Bearings are used to support the roller shell and allow it to rotate smoothly.

Send email to us Download as PDF

Product Detail

Product Tags

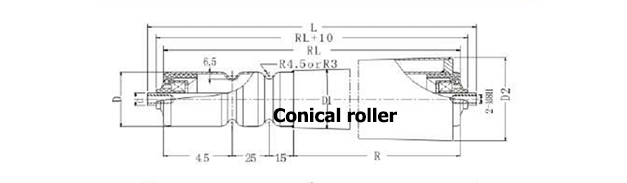

Cone Roller with groove

Feature

Conical rollers typically has a tapered shape, with a larger diameter at one end and a smaller diameter at the other end.
This design allows the rollers to smoothly guide materials around curves in a conveyor system. The main components of conical rollers include the roller shell, bearings, and shaft. The roller shell is the outer surface that comes into contact with the conveyor belt and the materials being transported. Bearings are used to support the roller shell and allow it to rotate smoothly. This conical roller is equipped with a nylon seat.

https://www.gcsroller.com/turning-rollers/

Model Turn Radius	Roller Dia (mm)	Shaft D	Small end dia of taper roll D1	Taper	Big end dia D2 RL=200 300 400 500 600
GC50-R950/850	φ 50	10/12	φ 53	3.18/3.6	64/65.5 69.5/72 75/78 80.6/84.5 86.3/90.7
GC50-R1100/1100	φ 60	10/12	φ 63	3.18/3.6	74/75.5 79.5/82 85/88 90.6/94.5 96.3/100.7

General Data

Conveying load	Single material ≤30KG
Maximum speed	0.5m/s
Temperature range	-5℃~40°C

Materials

Bearing housing	Plastic carbon steel components
Sealing end cap	Plastic components
Call	Carbon steel
Roller surface	Steel

Structure

This conical roller is equipped with a nylon seat. This design allows the rollers to smoothly guide materials around curves in a conveyor system. The main components of conical rollers include the roller shell, bearings, and shaft. The roller shell is the outer surface that comes into contact with the conveyor belt and the materials being transported. Bearings are used to support the roller shell and allow it to rotate smoothly.
