Steel Sprocket Roller for friction drive conveyor
Feature
The transmission end is equipped with steel sprocket, welded structure, full bearing seat, which can bear heavy load;
The end is equipped with a plastic sealing small end cap, which has better dustproof effect;
Because its load-bearing and moving parts are all metal, it is not affected by the temperature environment.
General Data
|
Conveying load |
Single Roller≤400KG |
|
Maximum speed |
0.5m/s |
|
Temperature range |
-20℃~80C |
Materials
| Bearing housing | Plastic carbon steel components |
| Sealing end cap | Plastic components |
| Sprocket small end cap | Plastic |
| Ball | Carbon steel |
| Roller surface | Steel/ Aluminum |

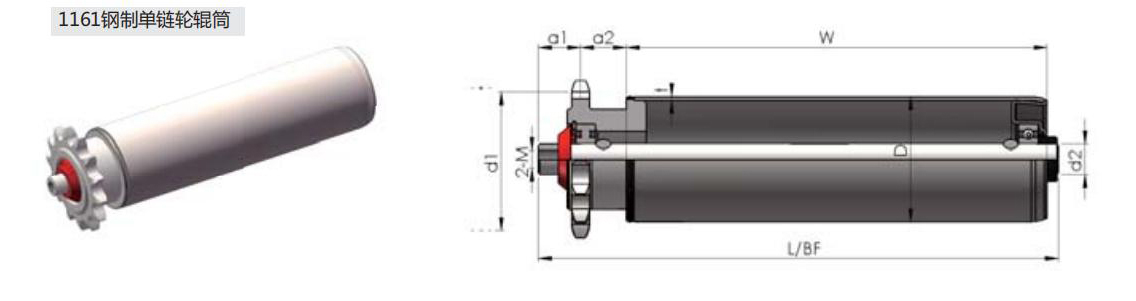

Steel Sprocket Roller for friction drive conveyor-1161
Structure
| Sprocket parameters | ||||||
| Tube DiaΦ | Shaft Dia | Length | Sprocket | a1 | a2 | d1 |
| Φ50 | Φ12 | BF/L=W+41 | 08B11T | 18 | 18.5 | Φ45.08 |
| Φ50 | Φ12 | BF/L=W+42 | 08B14T | 18 | 18.5 | Φ57.07 |
| Φ60 | Φ12/15 | BF/L=W+42 | 08B14T | 18 | 18.5 | Φ57.07 |
| Φ76 | Φ15 | BF/L=W+42 | 08B14T | 18 | 18.5 | Φ57.07 |
| Φ76 | Φ20 | BF/L=W+44 | 08B13T | 20 | 18.5 | Φ66.33 |
| Φ80 | Φ20 | BF/L=W+44 | 08B15T | 20 | 18.5 | Φ76.35 |
| Φ89 | Φ20 | BF/L=W+44 | 08B15T | 20 | 18.5 | Φ76.35 |
|
1161 Selection parameter table |
|||||||||
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Sprocket |
Shaft Length L |
Material |
Selection of the sample |
|
|
D |
t |
d |
|
BF |
|
(Female thread) |
Steel zincplated |
Stainless Steel |
OD 60mm Shaft dia 15mm |
|
|
|
|
|
|
|
|
|
|
Tube Length 1000mm |
|
Φ50 |
1.5 |
Φ12 |
150KG |
W+41 |
08B11T |
W+41 |
✓ |
✓ |
|
|
Φ50 |
1.5 |
Φ12/15 |
150KG |
W+42 |
08B14T |
W+42 |
✓ |
|
Steel zinc plated, female thread |
|
Φ60 |
2.0 |
Φ12/15 |
200KG |
W+42 |
08B14T |
W+42 |
✓ |
✓ |
1161.60.15.1000.A0.10 |
|
Φ60 |
3.0 |
Φ15 |
200KG |
W+42 |
08B14T |
W+42 |
✓ |
|
|
|
Φ76 |
3.0 |
Φ15/20 |
400KG |
W+44 |
10A13T |
W+44 |
✓ |
✓ |
|
|
Φ76 |
4.0 |
Φ20 |
400KG |
W+44 |
10A13T |
W+44 |
✓ |
|
|
|
Φ80 |
3.0 |
Φ20 |
400KG |
W+44 |
10B15T |
W+44 |
✓ |
|
|
|
Φ89 |
3.0 |
Φ20 |
400KG |
W+44 |
10B15T |
W+44 |
✓ |
|
|
|
Φ89 |
4.0 |
Φ20 |
400KG |
W+44 |
10B15T |
W+44 |
✓ |
|
|

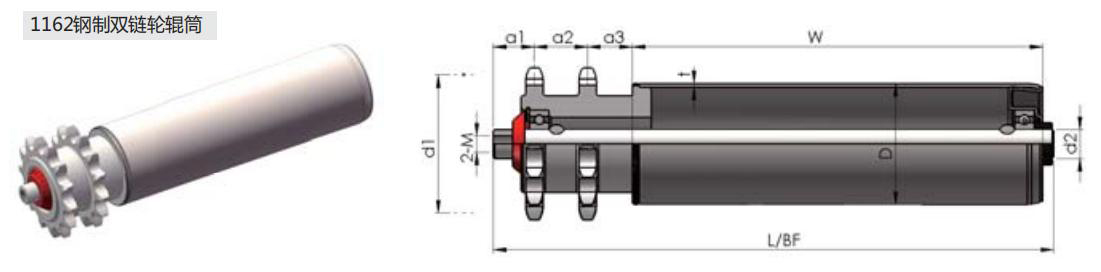

Steel Sprocket Roller for friction drive conveyor-1162
|
Sprocket Parameters |
|||||||
|
Tube diameterΦ |
Shaft diameter |
Overall length |
Sprocket teeth |
a1 |
a2 |
d3 |
d1 |
|
Φ50 |
Φ12 |
BF/L=W+63 |
08B11T |
18 |
22 |
18.5 |
Φ45.08 |
|
Φ50 |
Φ12 |
BF/L=W+64 |
08B14T |
18 |
22 |
18.5 |
Φ57.07 |
|
Φ60 |
Φ12/15 |
BF/L=W+64 |
08B14T |
18 |
22 |
18.5 |
Φ57.07 |
|
Φ76 |
Φ15 |
BF/L=W+64 |
08B14T |
18 |
22 |
18.5 |
Φ57.07 |
|
Φ76 |
Φ20 |
BF/L=W+69 |
10A13T |
20 |
25 |
18.5 |
Φ66.33 |
|
Φ80 |
Φ20 |
BF/L=W+69 |
10B15T |
20 |
25 |
18.5 |
Φ76.35 |
|
Φ89 |
Φ20 |
BF/L=W+69 |
10B15T |
20 |
25 |
18.5 |
Φ76.35 |
|
1162 Selection parameter table |
|||||||||
|
Tube diameter |
Tube Thickness |
Shaft Diameter |
Maximum load |
Bracket width |
Sprocket |
Shaft Length L |
Material |
Selection of the sample |
|
|
D |
t |
d |
BF |
(Female thread) |
Steel zincplated |
Stainless Steel |
OD60mm Shaft dia15mm |
||
|
Tube Length1000mm |
|||||||||
|
Φ50 |
1.5 |
Φ12 |
150KG |
W+63 |
08B11T |
W+63 |
✓ |
✓ |
|
|
Φ50 |
1.5 |
Φ12/15 |
150KG |
W+64 |
08B14T |
W+64 |
✓ |
Steel zincplated, Female thread |
|
|
Φ60 |
2.0 |
Φ12/15 |
200KG |
W+64 |
08B14T |
W+64 |
✓ |
✓ |
1162.60.15.1000.A0.10 |
|
Φ60 |
3.0 |
Φ15 |
200KG |
W+64 |
08B14T |
W+64 |
✓ |
||
|
Φ76 |
3.0 |
Φ15/20 |
400KG |
W+69 |
10A13T |
W+69 |
✓ |
✓ |
|
|
Φ76 |
4.0 |
Φ20 |
400KG |
W+69 |
10A13T |
W+69 |
✓ |
||
|
Φ80 |
3.0 |
Φ20 |
400KG |
W+69 |
10B15T |
W+69 |
✓ |
||
|
Φ89 |
3.0 |
Φ20 |
400KG |
W+69 |
10B15T |
W+69 |
✓ |
||
|
Φ89 |
4.0 |
Φ20 |
400KG |
W+69 |
10B15T |
W+69 |
✓ |
||
Note : Φ60 Dia pipe and above add flange roller (welded and screw fastened).
