Steel sprockets standard steel conveyor roller
Steel sprockets standard steel conveyor roller
Feature
The transmission end is equipped with a steel sprocket, and the welded structure is suitable for heavy-duty transportation; the end is equipped with a plastic bearing seat, which can reduce noise;
Both ends are equipped with plastic end caps for a beautiful appearance.
General Data
|
Conveying load |
Single material≤30KG |
|
Maximum speed |
0.5m/s |
|
Temperature range |
-5℃~40℃ |
Materials
|
Bearing housing |
Plastic carbon steel components |
|
Sealing end cap |
Plastic components |
|
Ball |
Carbon steel |
|
Roller surface |
Steel |

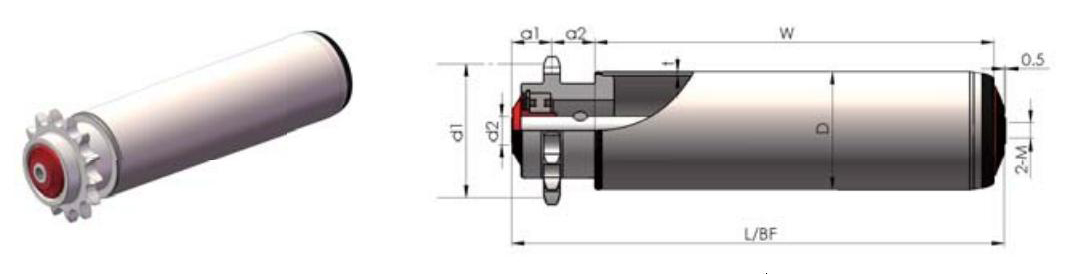

Structure
|
Sprocket parameters |
||||||
|
Tube DiaΦ |
Shaft Dia |
Length |
Sprocket |
a1 |
a2 |
d1 |
|
Φ50 |
Φ12/15 |
BF/L=W+42 |
08B14T |
18 |
18.5 |
Φ57.07 |
|
Φ60 |
Φ12/15 |
BF/L=W+42 |
08B14T |
18 |
18.5 |
Φ57.07 |
|
Φ80 |
Φ20 |
BF/L=W+37 |
08B15T |
18 |
13 |
Φ76.35 |
Selection Parameter Table
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Sprocket |
Shaft Length L |
Material |
Selection of the sample |
||
|
D |
t |
d |
|
BF |
|
(Female thread) |
Steel zincplated |
Stainless Steel |
Aluminum |
OD 60mm Shaft dia 15mm |
|
|
|
|
|
|
|
|
|
|
|
Tube Length 1000mm |
|
Φ50 |
1.5 |
Φ12/15 |
160KG |
W+42 |
08B41T |
W+42 |
✓ |
✓ |
|
|
|
Φ50 |
2.0 |
Φ12/15 |
160KG |
W+42 |
08B41T |
W+42 |
✓ |
|
|
Steel zinc plated, female thread |
|
Φ60 |
2 |
Φ/12/15 |
170KG |
W+42 |
08B41T |
W+42 |
✓ |
✓ |
|
1151.60.15.1000.A0.10 |
Remarks: Φ60 Rollers and above can add sidewall rollers (welded and screwed).
