Multi wedge pulley drive conveyor roller wholesale

Short Description:

Multi-pulley standard steel conveyor roller

Belt Drive Series Roller 1130

The end is equipped with a plastic-steel timing wheel, which can provide greater torque and synchronization effect, and requires slightly higher installation accuracy. (With PU timing belt, it can be used in a clean environment)

Roller distances are selected at fixed values, drive wheels need to be protected.

It is widely used in light and medium load, medium and high-speed transportation requirements.

Send email to us Download as PDF

Product Detail

Product Tags

Multi-pulley standard steel conveyor roller

Feature

The transmission end is equipped with T5 toothed Poly Vee Wheel, which can provide high transmission torque and high-quality synchronization performance

The end bushing adopts plastic precision bearing assembly, which requires high installation accuracy for smooth operation to ensure the cooperation between the poly vee belt and the wheel.

General Data

Conveying load	Single material≤30KG
Maximum speed	0.5m/s
Temperature range	-5℃~40℃

Materials

Bearing housing	Plastic & carbon steel components
Sealing end cap	Plastic components
Ball	Carbon steel
Roller surface	Steel/ Aluminum

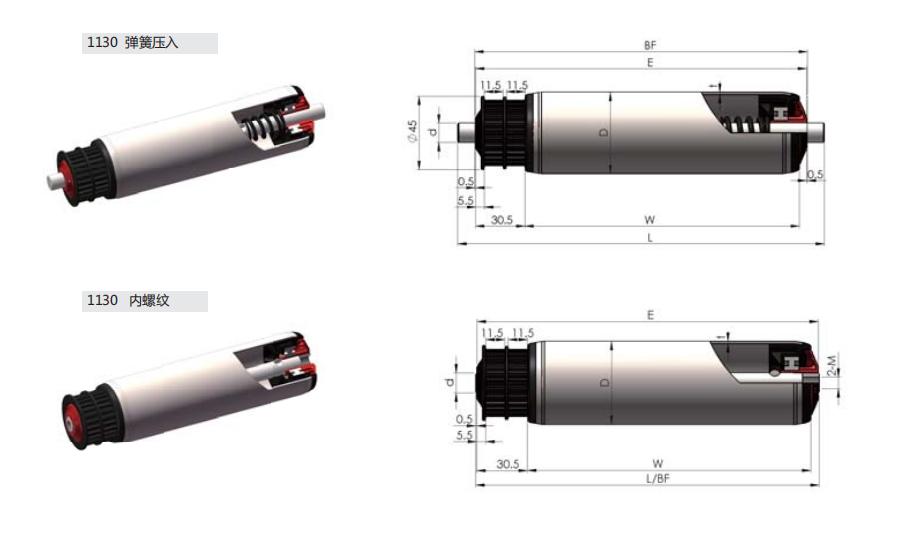

Structure

Selection Parameter Table

Tube Dia	Tube thickness	Shaft Dia	Maximum load	Bracket width	Locating step	Shaft Length L	Shaft Length L	Material			Selection of the sample
D	t	d		BF	（Milling flat）E	(Female thread)	Spring pressure	Steel zincplated	Stainless Steel	Aluminum	OD 50mm Shaft dia 11mm
											Tube Length 1000mm
Φ50	1.5	Φ12/15	150KG	W+36	W+35	W+36	W+57	✓	✓	✓	Stainless steel 202, Female thread 1130.50.12.1000.B0.10
