Driving Conveyor Roller with Multi Wedge pulley Wholesale
Multi-pulley standard steel conveyor roller
Feature
The transmission end is equipped with a 9-groove poly vee wheel, which can provide greater torque and conveying speed; the end bushing adopts plastic precision bearing components, which runs smoothly;
Long-term operation and less maintenance.
General Data
| Conveying load | Single material≤30KG |
| Maximum speed | 0.5m/s |
| Temperature range | -5℃~40℃ |
Materials
| Bearing housing | Plastic & carbon steel components |
| Sealing end cap | Plastic components |
| Ball | Carbon steel |
| Roller surface | Steel/ Aluminum |

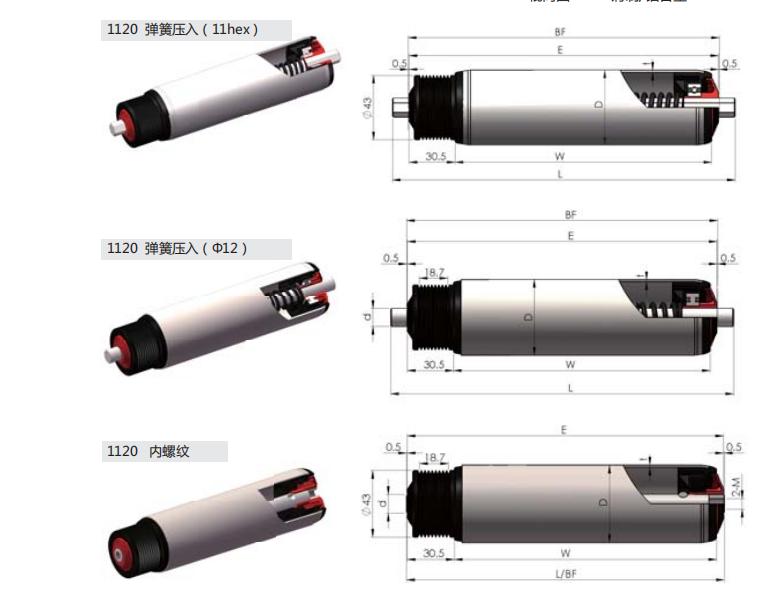

Structure
|
Poly vee belt selection reference |
|
|
Model |
Center distance |
|
2PJ256 |
60-63 |
|
2PJ286 |
73-75 |
|
2PJ290 |
76-78 |
|
2PJ314 |
87-91 |
|
2PJ336 |
97-101 |
|
2PJ346 |
103-107 |
|
2PJ376 |
119-121 |
|
2PJ416 |
129-134 |
|
2PJ435 |
142-147 |
|
2PJ456 |
157-161 |
|
3PJ256 |
60-63 |
|
3PJ286 |
73-75 |
|
3PJ290 |
76-78 |
|
3PJ314 |
87-91 |
|
3PJ336 |
97-101 |
|
3PJ346 |
103-107 |
|
3PJ376 |
119-121 |
|
3PJ416 |
129-134 |
Selection Parameter Table
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Shaft Length L |
Material |
Selection of the sample |
||
|
D |
t |
d |
BF |
（Milling flat）E |
(Female thread) |
Spring pressure |
Steel zincplated |
Stainless Steel |
Aluminum |
OD 50mm Shaft dia 11mm |
|
|
Tube Length 600mm |
|||||||||||
|
Φ48.6 |
1.5 |
11hex, Φ10/12/15 |
150KG |
W+36 |
W+35 |
W+36 |
W+57 |
✓ |
✓ |
Stainless steel 201 spring press-in |
|
|
Φ50 |
1.5 |
11hex, Φ10/12/15 |
150KG |
W+36 |
W+35 |
W+36 |
W+57 |
✓ |
✓ |
✓ |
1120.5011.600.B0.00 |
Remarks: Φ50 pipe can be covered with 2mm PVC soft rubber; Φ50 pipe can be equipped with cone sleeve for turning conveying, not suitable for food and dust-free environment requirements.
