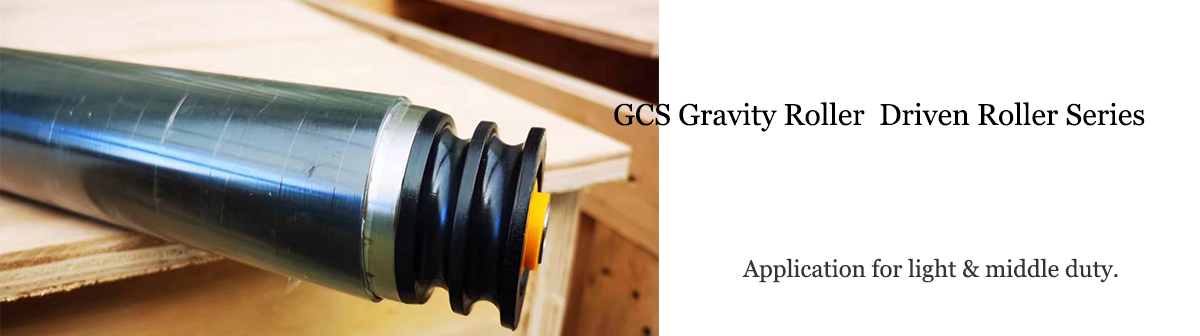

Driven rollers “O” Belt Gravity Roller | GCS Manufacturer
Feature
The transmission end is equipped with a plastic double-slot "O" type wheel, and the conveying surface is separated from the driving mechanism to reduce the interference between the conveyed object and the "O" belt;
The end sleeve adopts plastic precision bearing assembly, which runs smoothly;
The 50 diameter can replace the 1011/12 series grooved barrel to reduce runout.
General Data
| Conveying load | Single material≤30KG |
| Maximum speed | 0.5m/s |
| Temperature range | -5℃~40℃ |
Materials
| Bearing housing | Plastic & carbon steel components |
| Sealing end cap | Plastic components |
| Ball | Carbon steel |
| Roller surface | Steel/ Aluminum |

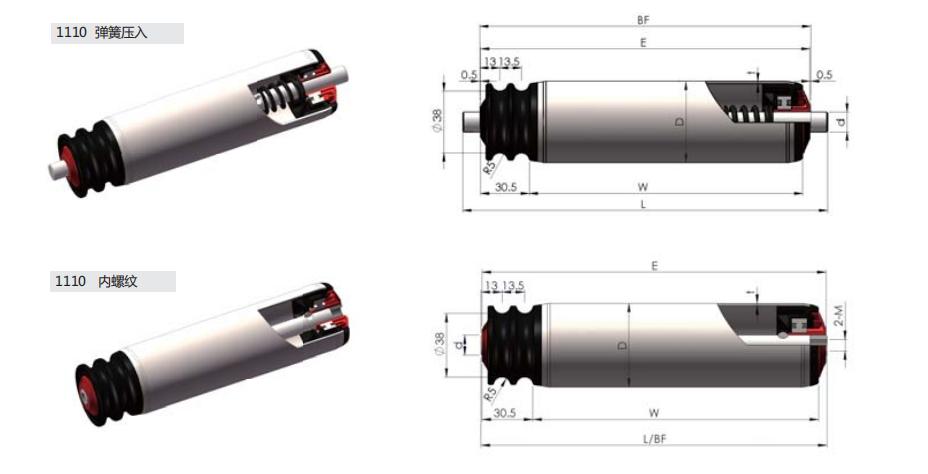

Structure
|
Tube Dia |
Tube thickness |
Shaft Dia |
Maximum load |
Bracket width |
Locating step |
Shaft Length L |
Shaft Length L |
Material |
Selection of the sample |
||
|
D |
t |
d |
|
BF |
（Milling flat）E |
(Female thread) |
Spring pressure |
Steel galvanized |
Stainless Steel |
Aluminum |
OD 50mm Shaft dia 11mm |
|
|
|
|
|
|
|
|
|
|
|
|
Tube Length 600mm |
|
Φ48.6 |
1.5 |
11hex、 Φ10/12 |
120KG |
W+10 |
W+9 |
W+10 |
W+31 |
✓ |
✓ |
|
Double-sided zincplated spring press-in |
|
Φ50 |
1.5 |
11hex、Φ8/10/12 |
120KG |
W+10 |
W+9 |
W+10 |
W+31 |
✓ |
|
|
1110.50.11.600.A100 |
