Ball transfer Unit for Conveyor accessories
Product Application
Highly applicable and widely used
Electronic factory | Auto parts | Daily use goods | Pharmaceutical industry | Food industry | Mechanical Workshop | Production equipment
Fruit industry | Logistics Sorting | Beverage industry
General machine construction
-Feed tables for sheet metal processing machines
- Bending machine fixtures
- Feeding mechanisms for machining centers
- Drilling machines for large motorized structures and motor-driven assembly aids
Material Handling
- Universal ball tables, carousels, and steering for sorting and distribution systems
- Constant conveyor crossovers
- Airport baggage sorting systems
- Steel pipe transport
- Lifting platforms
Other areas of application
- Special machine construction
- Aerospace industry
- Beverage and masonry industry
Product Construction
Ball transfer construction
The universal ball has a steel housing with an integrated hardened ball seat. This is the raceway for a large number of small bearing balls. As the load ball rotates, the bearing balls roll on the seat.
Advantages of ball transfers
- The design of the ball transfers ensures precise rolling in all mounting positions.
- Ball transfer ensures full load/carrying capacity
- Low maintenance costs for ball transfers
- Almost all ball transfer units in the mold are sealed against fouling by means of an impregnated felt seal.
- Ball transfers are quick and cost-effective to install

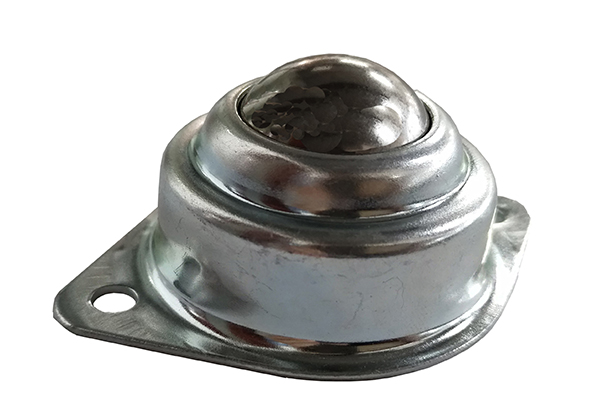

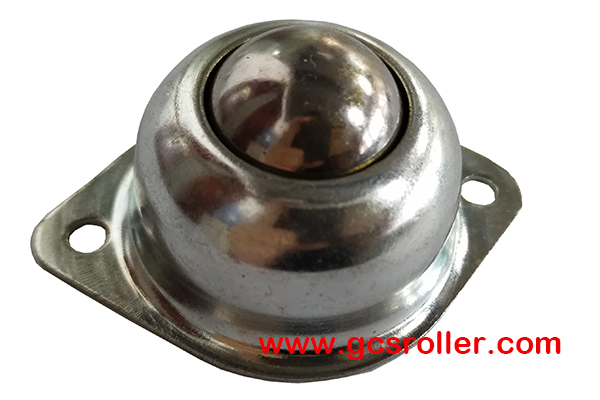

Parameters-Universal ball - PC254/PC254SS/PC254N
Universal ball
Universal ball
Universal ball
Conveyor parts universal ball
Product Application
Ball transfer Units are widely used in all kinds of industries, like manufacturing lines, assembly lines, packaging lines, conveyor machines, and logistic stores.
|
Model
|
Type
|
Dimensions (mm)
|
Ball Material
|
||||
|
D
|
d
|
P
|
L
|
H
|
|||
|
PC254
|
Round Type
Tower Type
|
50
|
25.4 | 56 | 70 | 30.5 |
Steel
|
|
PC254SS
|
Stainless Steel
|
||||||
|
PC254N
|
Nylon
|
||||||
Material Configuration
Frame bracket seat: carbon steel/stainless steel
Ball: Nylon/Carbon Steel/Stainless Steel
Parameters-Universal ball - Disc type
Universal ball
Conveyor parts universal ball
Product Application
Ball transfer Units are widely used in all kinds of industries, like manufacturing lines, assembly lines, packaging lines, conveyor machines, and logistic stores.
|
Model
|
Load(kg)
|
Ball Material
|
Surface Finishing
|
|
PD254
|
35
|
Steel
|
Zinc plated
|
|
PD254SS
|
45
|
Stainless Steel
|
|
|
PD254N
|
35
|
Nylon
|
Material Configuration
Frame bracket seat: carbon steel/stainless steel
Ball: Nylon/Carbon Steel/Stainless Steel
